Hot Dip Galvanized Steel Solar Roof Mount System 10-60 Degree

Quantidade de ordem mínima : 100 quilowatts Preço : Negotiable
Detalhes da embalagem : caixa 1.Carton, pálete de madeira, embalagem do pacote da correia e outros tipos do pacote para asse Tempo de entrega : dentro do trabalho 15-25 dias após o depósito do recibo
Termos de pagamento : L/C, D/A, D/P, T/T, Western Union, MoneyGram Habilidade da fonte : 100MW/month
Lugar de origem: CHINA Marca: TIANFON
Certificação: SGS,ISO 9001,ISO 14001,OHSAS 18000, TÜA, CE Número do modelo: Sistemas à terra da montagem do painel solar

Informação detalhada

NOME: Sistemas à terra da montagem do painel solar Ângulo da instalação: 10-60 °
Cor: Natural ou personalizado Tipo: grade de ligar/desligar
Garantia: 10 anos Duração: Mais de 25 anos
Realçar:

60 Degree Solar Roof Mount System

,

Galvanized Steel Solar Roof Mount System

,

10 Degree Solar Roof Mount System

Descrição de produto

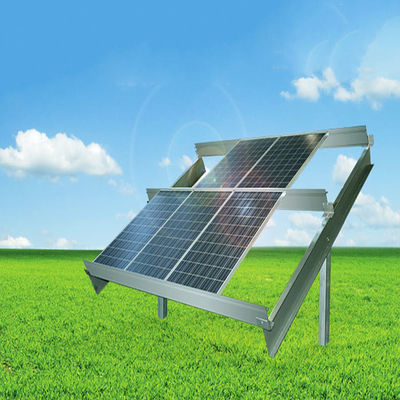

Hot Dip 10-60 Degree Installation Angle Galvanized Steel Solar Panel Ground Mounting Systems

The Solar Mounting structure is used to fix the solar pv panels and gives a support and inclination to the system. They are made by galvanized steel, anodized aluminum alloy & stainless steel which featured with lightweight, high strength and recyclable material.



They can be mounted on a concrete foundation or ground screws.Customized tilt angles meet the complex requirements of the construction site and use effectively energy of the sun. Pre-assembled beam saves labor time, reduces cost and makes installation quick.

Specifications:



Model Number: Solar Ground Mounts

Usage: Support Solar Modules

Max Building Height: 20m

Technique: Hot Rolled

Ground Clearance: ≥ 0.15m

Feature: Super quality;Great Compatibility; Quick Installation

Design: OEM/ ODM

Application: Residential project, commercial project, utility project and so on



  Product Name   Solar Ground Mounting System
  Feature   Super quality;Great Compatibility; Quick Installation
  Installation Site   Open Field/ Ground / Earth / Concrete Ground
  Wind Speed   60m/s
  Snow Load   1.4KN/m2
  Span   As required
  Structural Material   Steel Q235, Q245, Aluminum 6005-T5
  Color   Silver Or Customized
  Module Angle   10-60 Degrees According to Your Requirement or Latitude
  Warranty   10 Years
  Service Life   25 Years
  Array Layout   According to the actual situation



Benefits:



High reliability, 10-year quality Assurance



Complete technical support


Lower cost, Incomparable value


Faster/ Quick/secure installation, saving schedule

Load design, Safety Guarantee


Flexible attachment

Why Choose Us:


Professional customized design
Products were designed by the experienced designers which have the systematic design, stable structure, mature technology, can reduce the difficulty of the installation on the most conditions.


Easy to install
The pre-assembled design of the highest level in factory simplifies construction site work to the largest degree and therefore installation is simple and quick. It can effectively improve construction efficiency, shorten construction period and reduce construction costs.



Widely application
The mounting system suitable for various kinds of project, including residential project, commercial project, utility project and so on.


Safety
The racking systems can stand up to the extreme weather condition. The main support components have also been tested to guarantee its structure and load-carrying capacity.


Great Compatibility
The Tianfon mounting system compatible with most of the major framed and frameless PV modules on the market.


Super quality
All products are made by experienced skilled staffs to operate quality. With strictly full inspected and controlled by Qc department.

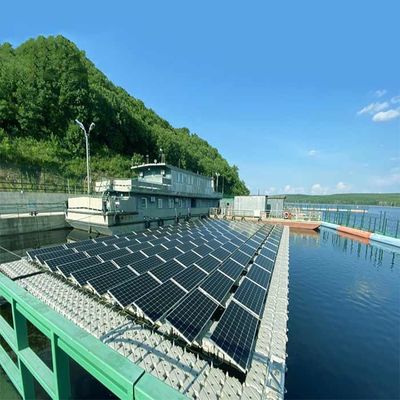

Application:

Hot Dip Galvanized Steel Solar Roof Mount System 10-60 Degree 0
Hot Dip Galvanized Steel Solar Roof Mount System 10-60 Degree 1

Packaging & Delivery:

Hot Dip Galvanized Steel Solar Roof Mount System 10-60 Degree 2


Payment Terms: L/C,D/A,D/P,T/T



Package: strong and long distance transportation package



Port: Tianjin, Shanghai, Qingdao



Delivery Detail: Delivery time:7--25 days after receiving customer’s deposits


Certificates:

Hot Dip Galvanized Steel Solar Roof Mount System 10-60 Degree 3
Hot Dip Galvanized Steel Solar Roof Mount System 10-60 Degree 4
